Toggles switches range in Daier from 1 to 4 poles, 1 to 20 amps.KN3C contains 202/212/203/213/223. Daier offers a variety of nylon and metal toggle styles, as well as illuminated toggles. We have many kinds of terminal, the most popular terminal is PCB terminal, then is screw terminal.
They are widely used in industrial equipment. Some of the switches made by Bakelite. Because of the advantage of switches are largely current and long life, they are popular in the market.
Several families of heavy-duty toggle switches are available, as well as a high-temperature snap-in toggle switch series. Certifications include CE, CQC, TUV&SGS.

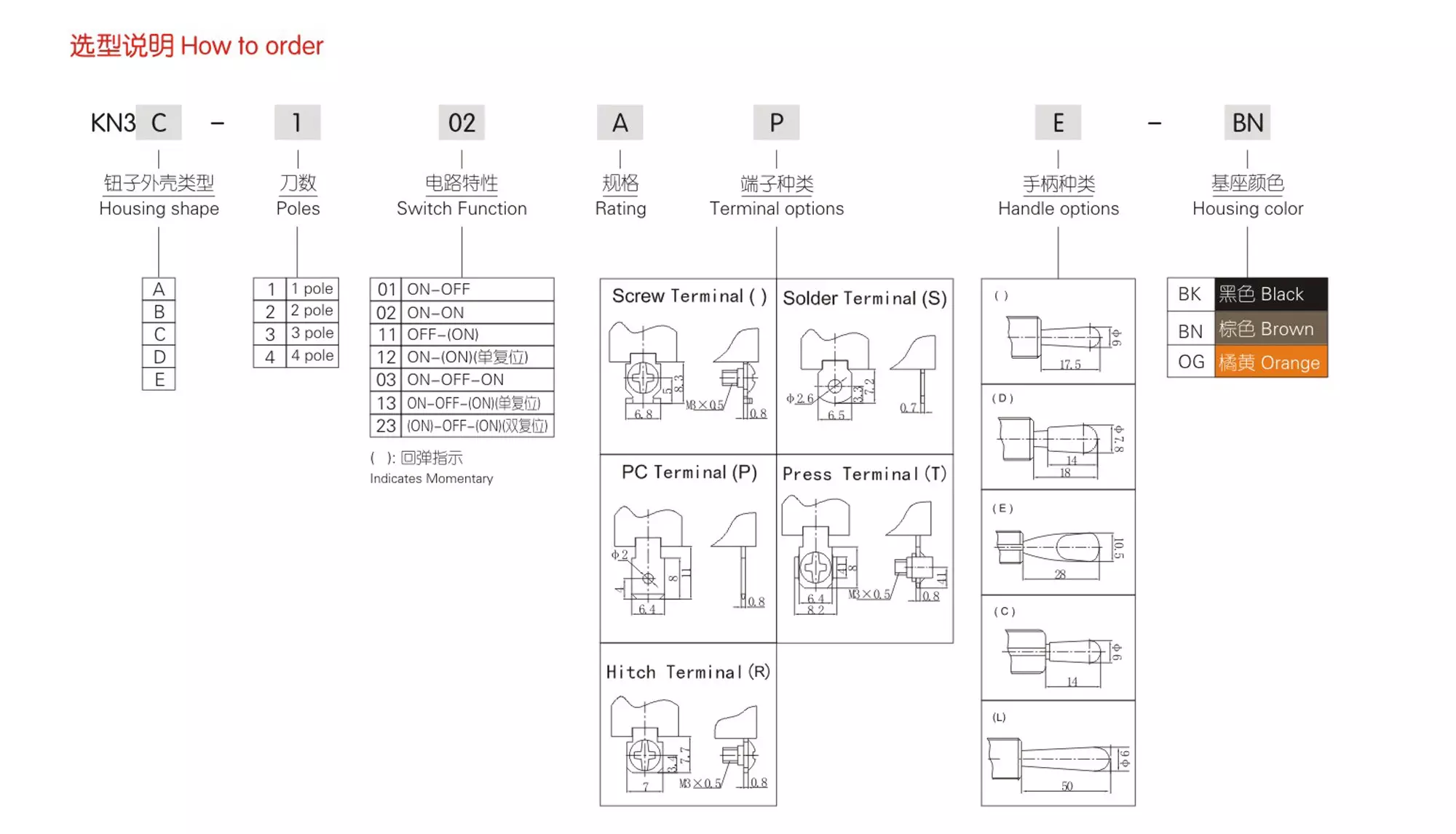

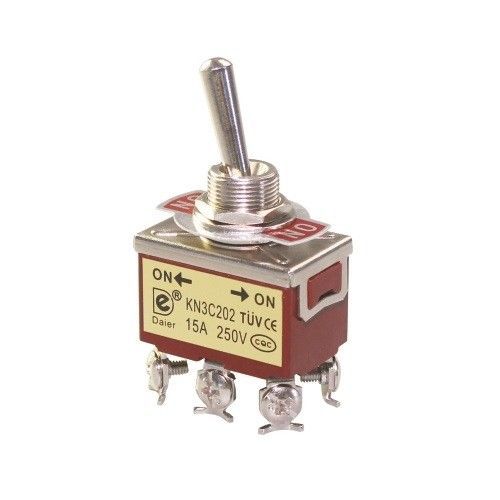

The KN3C-202 3 way toggle switch related product, pls check the detailed information as below:
| KN3C-202 | 6Pin, ON-ON, screw terminal | KN3C-202P | 6Pin, ON-ON, PCB terminal |
| KN3C-212 | 6Pin, ON- momentary ON, screw terminal | KN3C-212P | 6Pin, ON- momentary ON, PCB terminal |
| KN3C-203 | 6Pin, ON-OFF-ON, screw terminal | KN3C-203P | 6Pin, ON-OFF-ON, PCB terminal |
| KN3C-213 | 6Pin, ON-OFF- momentary ON, screw terminal | KN3C-213P | 6Pin, ON-OFF- momentary ON, PCB terminal |
| KN3C-223 | 6Pin, momentary ON-OFF- momentary ON, screw terminal | KN3C-223P | 6Pin, momentary ON-OFF- momentary ON, PCB terminal |
Pls check the datasheet below:
| Housing: | Bakelite | Lever: | Brass with Nickel plated |
| Terminal: | Brass with sliver plated | Contact & Operation: | ON-OFF/(ON)-OFF |
| Rating: | 6A/10A/20A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1000mΩ min (500VDC) | OEM or ODM: | Available |
